🧩 Multifunction FM Radio DIY Kit - RDA5807 Radio Module with OLED Display (87-108MHz)
🔪 Discover the joy of building your own radio with our Multifunction FM Radio DIY Kit. This engaging project allows you to explore the world of FM radio while enjoying the satisfaction of creating a functional device from scratch. The provided RDA5807 radio module ensures that you experience exceptional audio quality and performance.
🔧 Key Features:
- Automated Station Search: The radio kit features an automatic station search function that can identify and store up to 30 nearby radio stations, ensuring that you always have your favorite channels at your fingertips.
- High-Quality Sound: With advanced noise cancellation, bass enhancement, and high sensitivity, the RDA5807 module delivers clear audio while minimizing interference, offering an immersive listening experience.

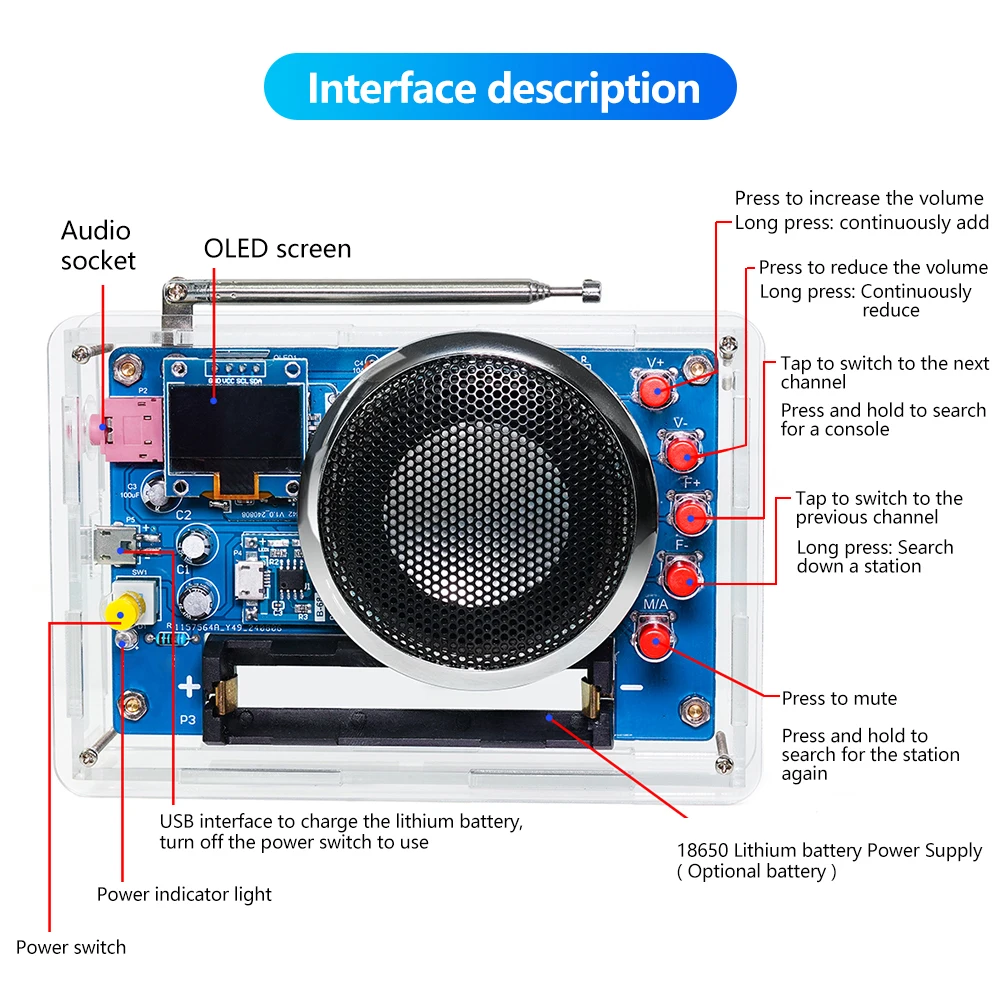

- Clear OLED Display: The integrated OLED screen provides a clear interface for easy navigation of functions and displays critical information, including the battery level, ensuring you stay informed while using the device.
- Portable Power: Powered by a single rechargeable lithium battery, this kit includes a charging circuit, allowing you to charge your radio conveniently, whether you're at home or on the go.
- Adjustable Volume Control: Tailor your listening experience with 15 volume levels and a mute mode, giving you complete control over your audio environment.
- Memory Storage: The kit is equipped with a power-off memory feature, allowing you to retain your favorite stations even after powering down, while automatic station search saves time for future listening.

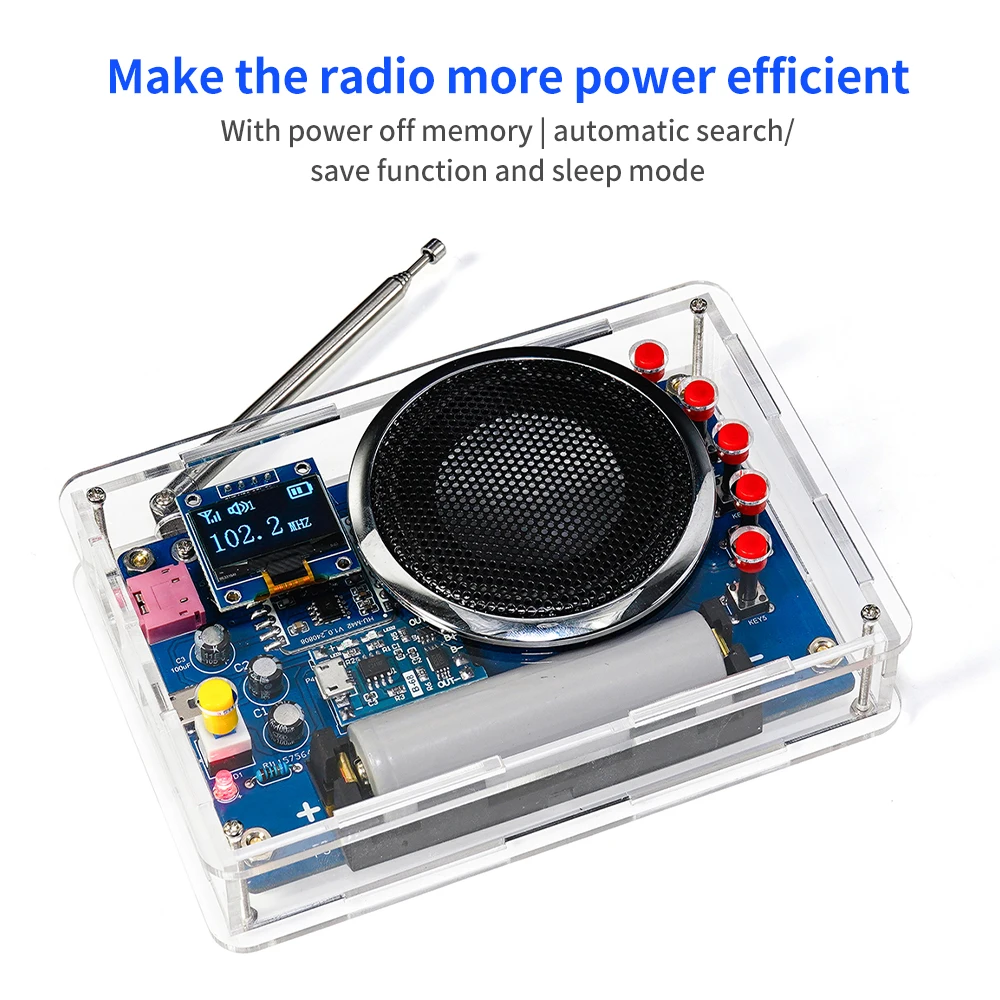

- Energy-Efficient Sleep Mode: To prolong battery life, the radio includes a sleep mode that conserves energy when not in use, making it both eco-friendly and practical.
- Station Management: Manage your radio stations effortlessly with features that allow you to modify search channel thresholds and monitor radio signal strength.
🔍 Specifications:
- Kit Name: OLED Display Radio Production Kit
- Power Supply: Single 18650 lithium battery (not included)
- Receiving Frequency Band: 87-108MHz
- Maximum Operating Current: Approximately 300mA (at maximum volume)
- PCB Size: 115.8 x 75mm

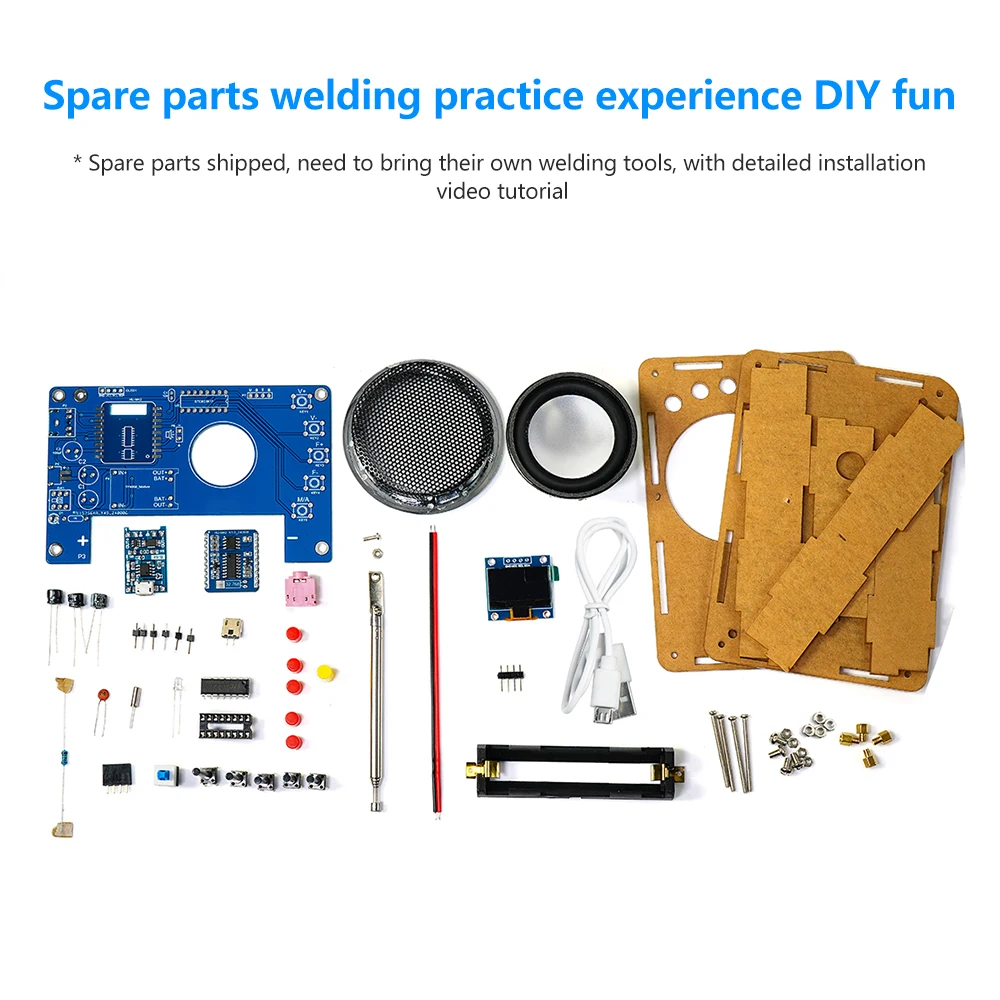

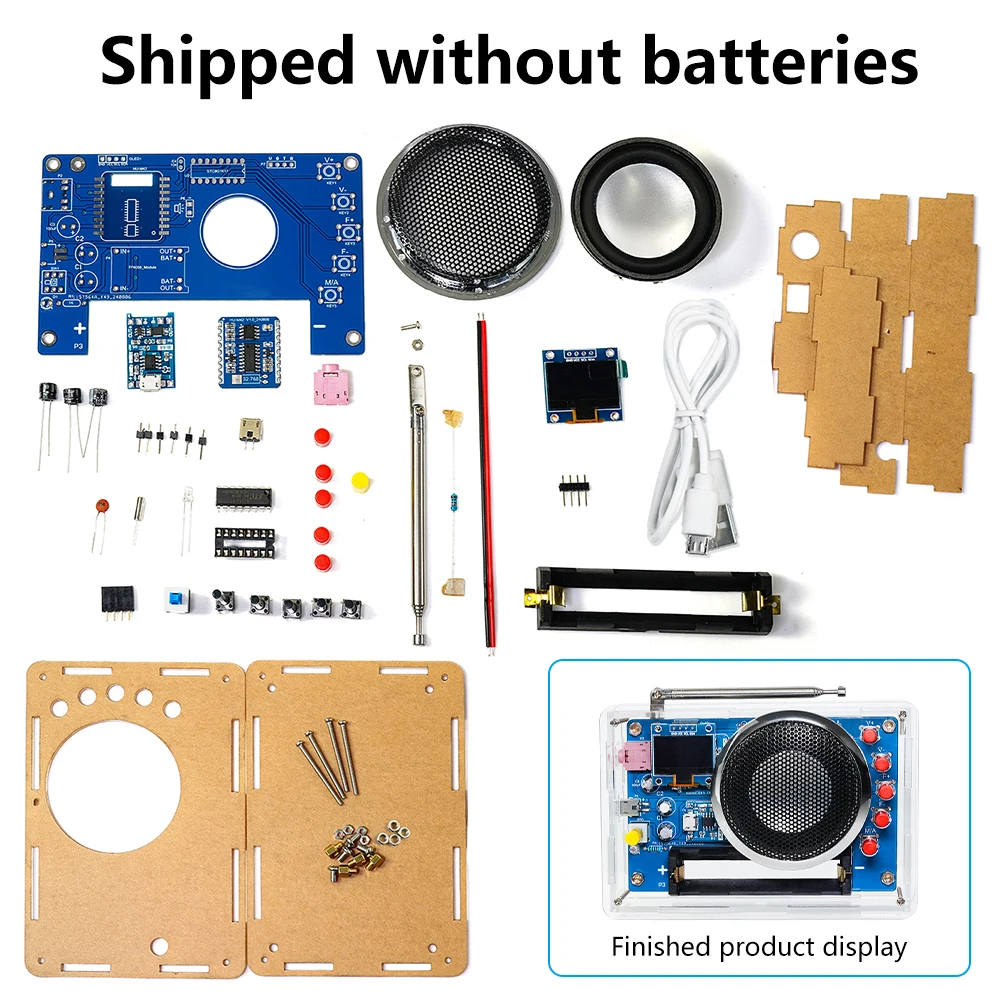

💍 Note: This kit requires DIY assembly and soldering. Ensure you have the necessary tools to assemble the individual components.
Embrace the DIY spirit and enjoy the process of creation with this outstanding radio kit. Perfect for hobbyists and anyone looking to deepen their understanding of electronics!
