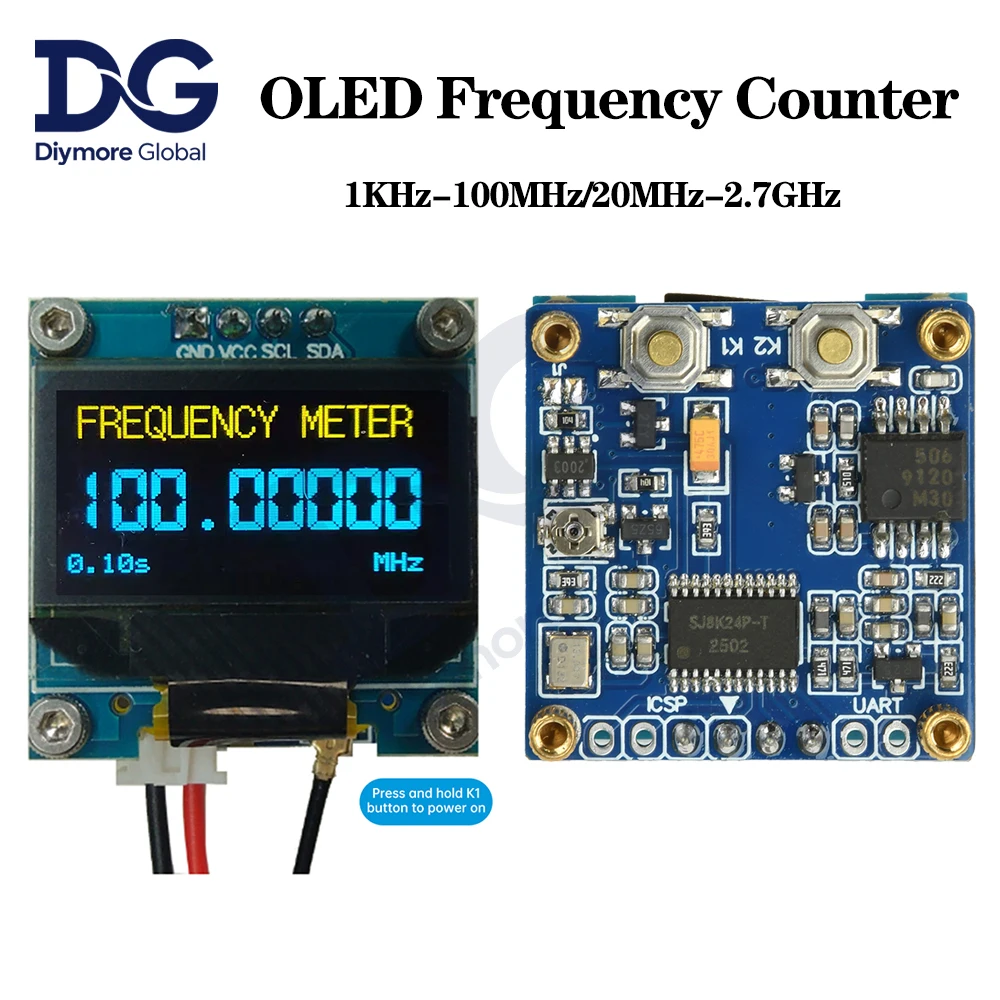

High - Precision OLED Frequency Counter for RF Signal Measurement (1kHz to 2.7GHz) (1KHz - 100MHz)

🛠️ Product Overview: Experience high-precision frequency measurement with the 0.96-Inch OLED Frequency Counter, designed to accommodate various RF signal transceiver applications. This advanced display module ensures accurate frequency readings across different ranges, making it an essential tool for radio frequency enthusiasts and professionals alike.

🔴 Frequency Measurement Range: The frequency counter is available in two distinct models, each tailored for specific measurement needs:

• 1KHz-100MHz Model: Ideal for general frequency measurement tasks, this model operates effectively within the range of 1KHz to 100MHz, providing reliable readings for various applications.
• 20MHz-2.7GHz Model: Designed for higher frequency ranges, this unit excels in measuring frequencies from 20MHz to 2.7GHz, making it suitable for walkie-talkie and communication device applications.

🪶 Key Features:

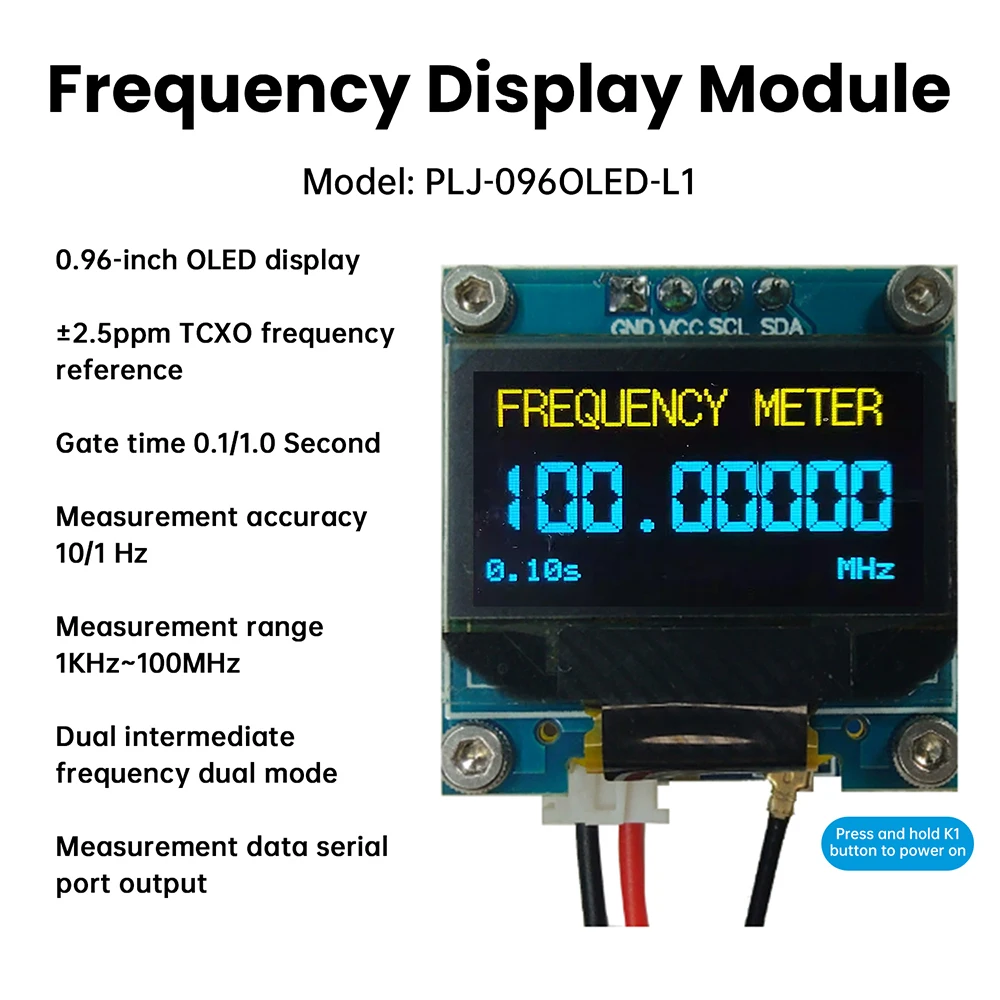

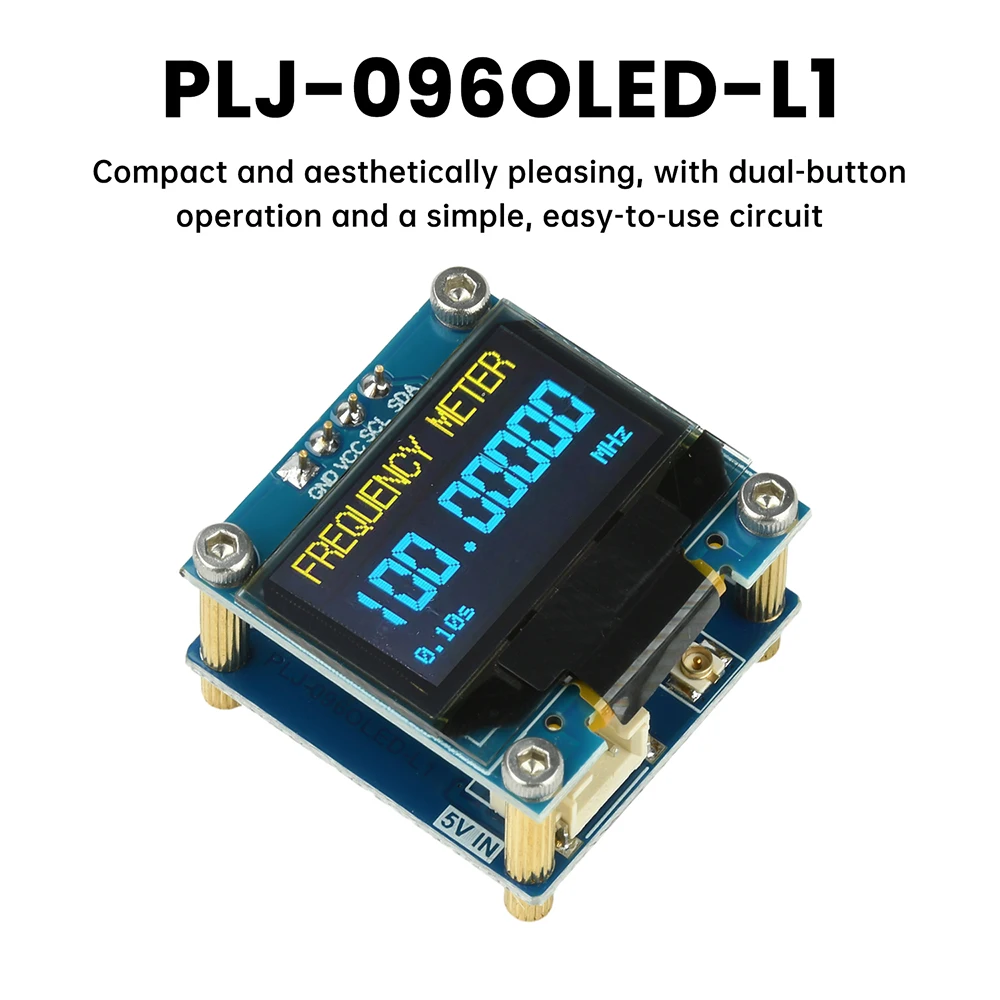

• Display: A clear and vibrant 0.96-inch OLED display offers easy readability of frequency measurements in real-time.
• Operating Voltage: Both models have flexible operating voltages, ensuring compatibility with a variety of power sources.
• Measurement Accuracy: With exceptional accuracy ratings (10/1Hz for the 1KHz-100MHz model and 100/64Hz for the 20MHz-2.7GHz model), precision is guaranteed in all your measurements.

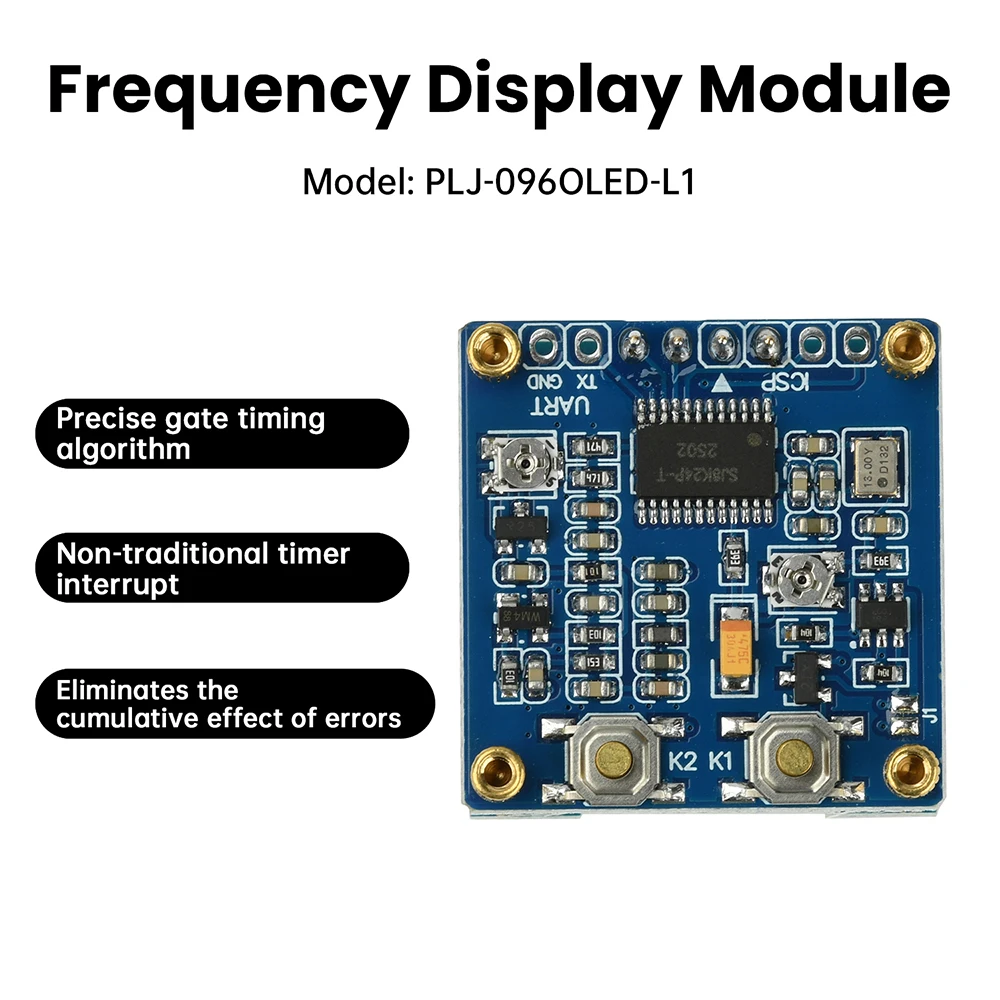

• Gate Time: Adjustable gate times (0.1/1.0 seconds for the first model and 0.64/1.0 seconds for the second) allow for tailored measurement intervals based on user requirements.
• UART Serial Output: The counter integrates seamlessly with other systems, enabling data output via UART serial communication.
• High Impedance Input: Ensures minimal impact on the measured signal, maintaining the integrity of your readings.

🔍 Application Scenarios: This versatile frequency counter module is ideal for a range of applications, including but not limited to:

• Radio frequency display systems
• Oscillation circuit frequency measurement
• Crystal oscillator frequency screening
• Embedded system applications

Precautions for Use:

• Avoid exposing the device to extreme temperatures, humidity, and dusty environments, as well as severe vibration to maintain optimal performance.

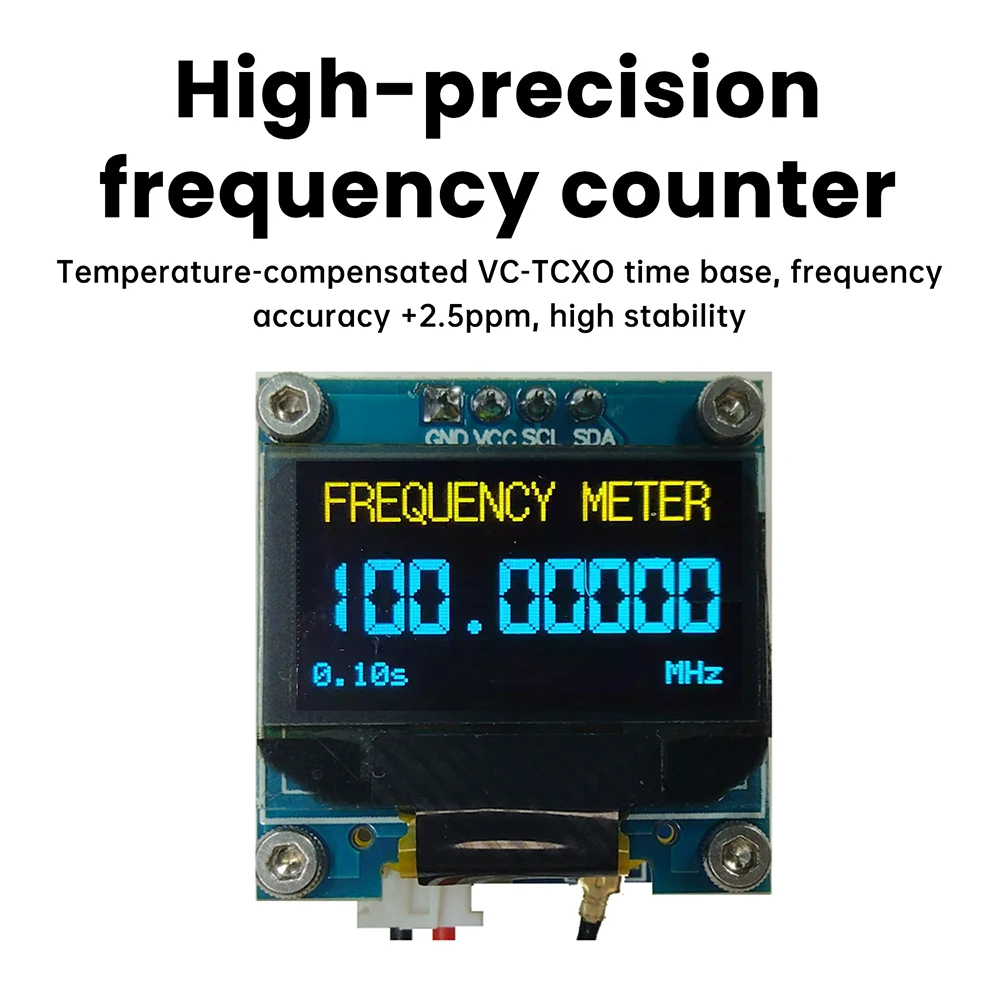

• The clock reference is factory-calibrated using GPSDO technology for accuracy; adjustments to these settings should only be made when absolutely necessary.
• Handle the onboard signal input connector with care, as it is a delicate component.

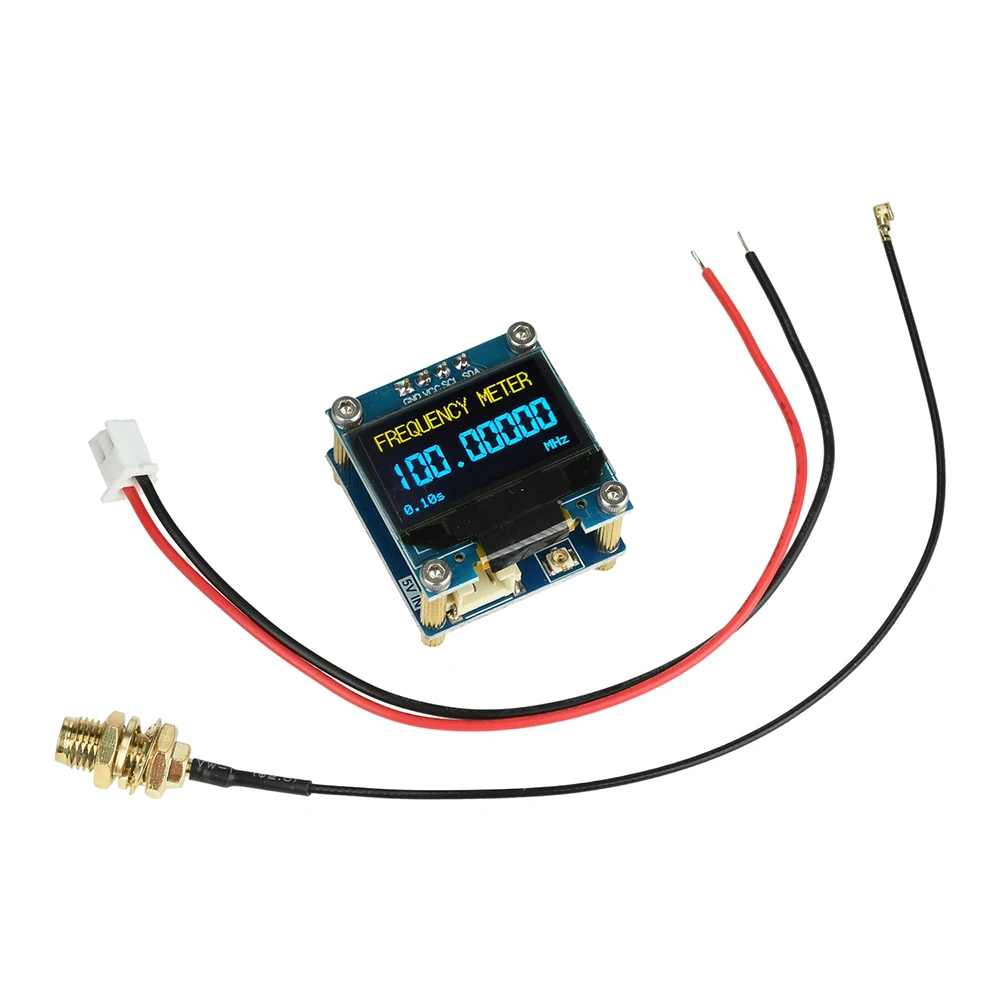

🏆 Included in the Package:

• Frequency Module x1
• Signal Cable x1
• Power Cable x1

🛠️ Elevate your frequency measurement capabilities with the 0.96-Inch OLED Frequency Counter, a reliable and precise solution for all your RF signal needs.
