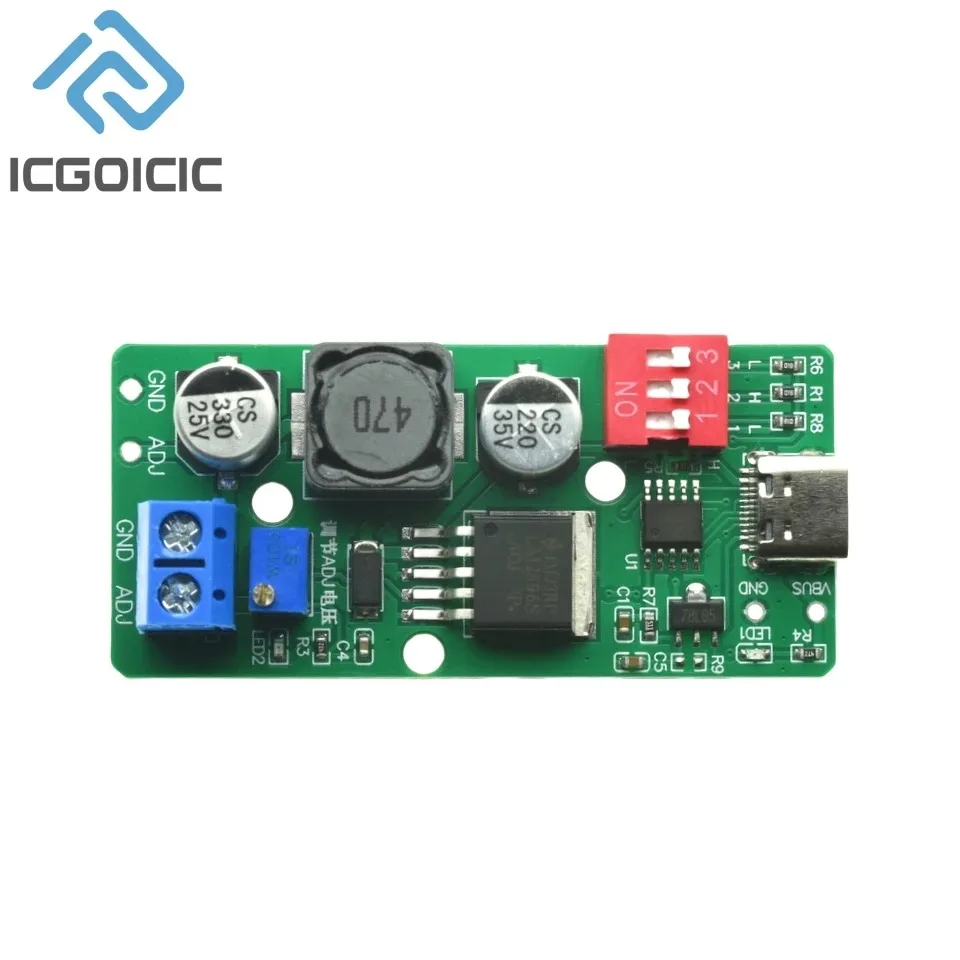

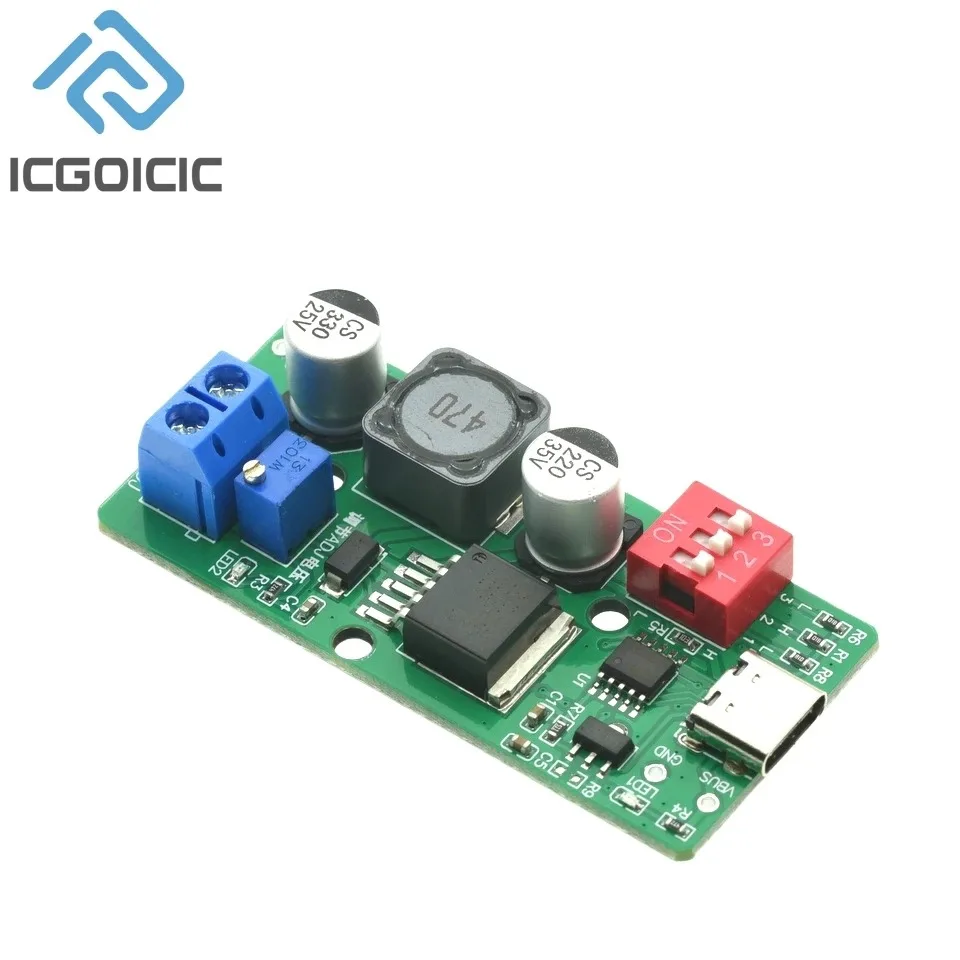

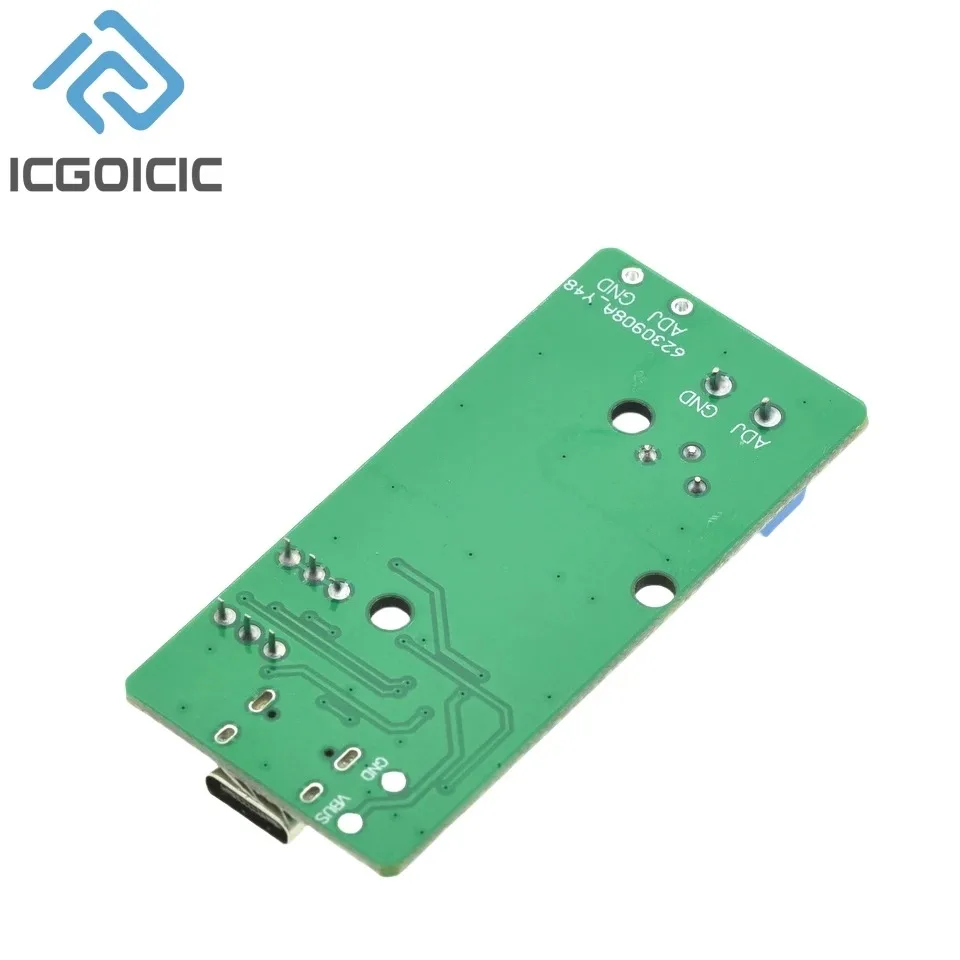

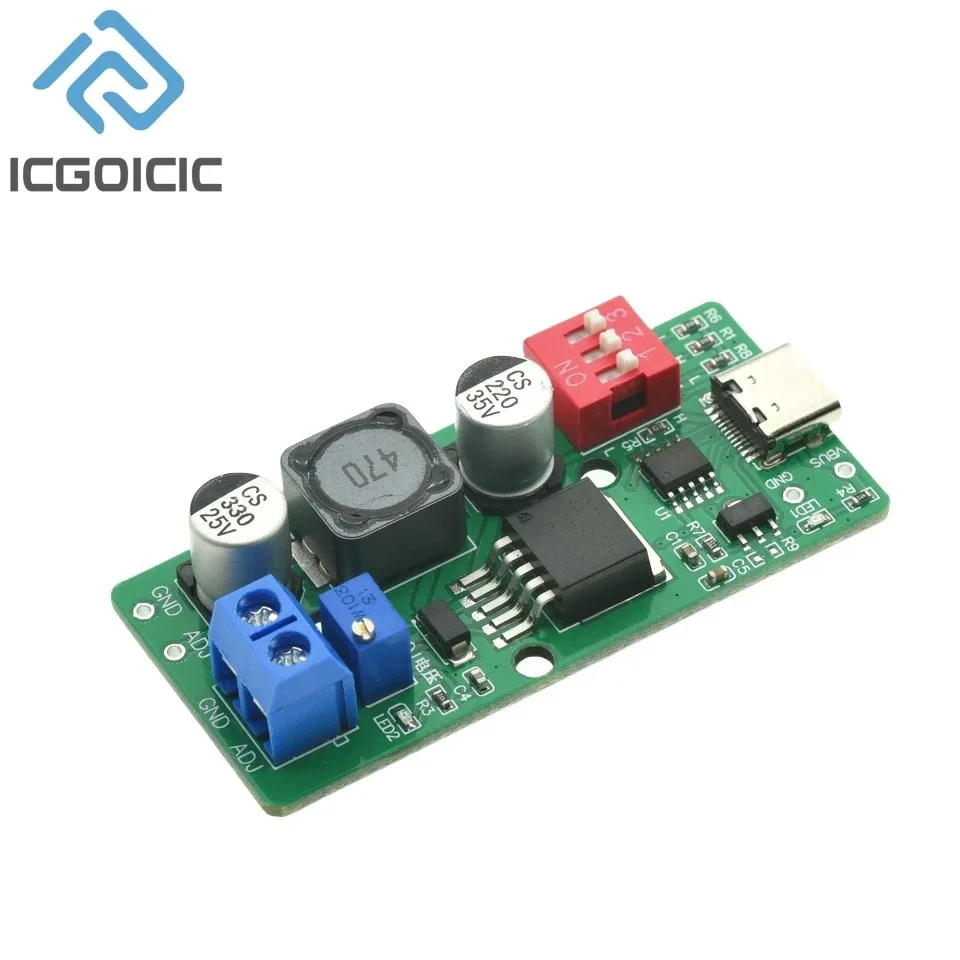

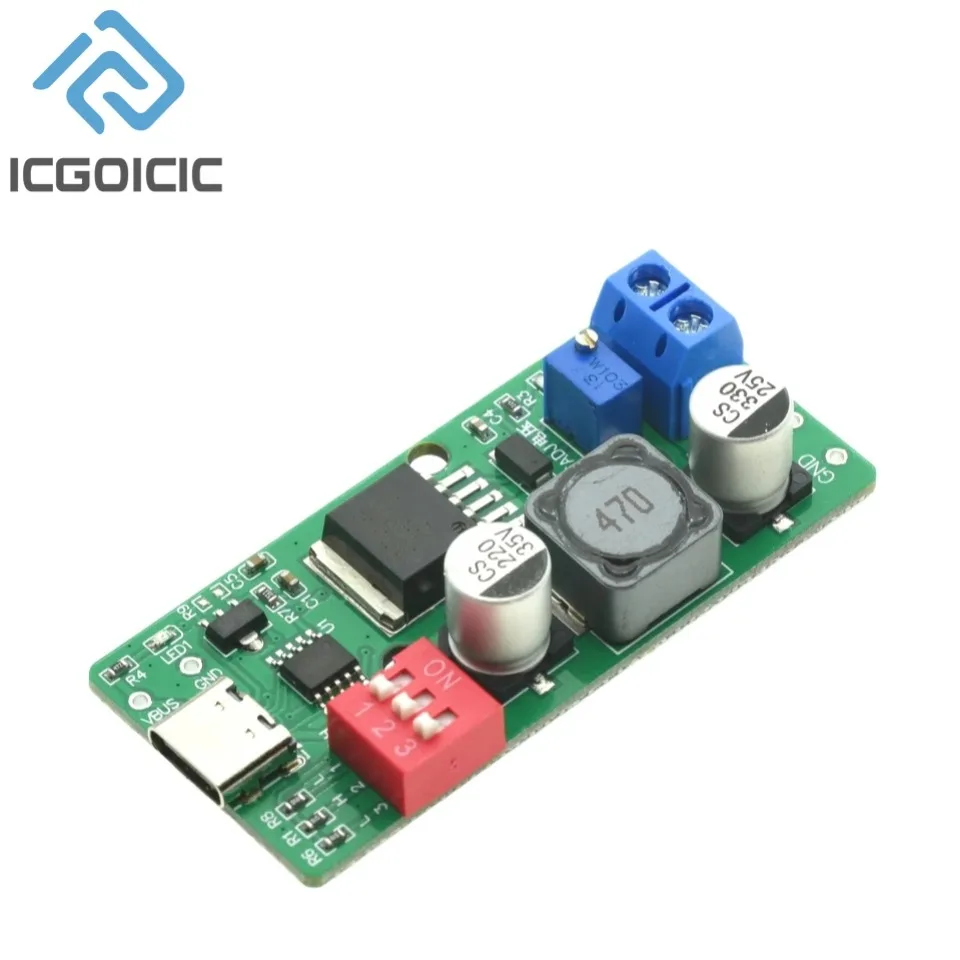

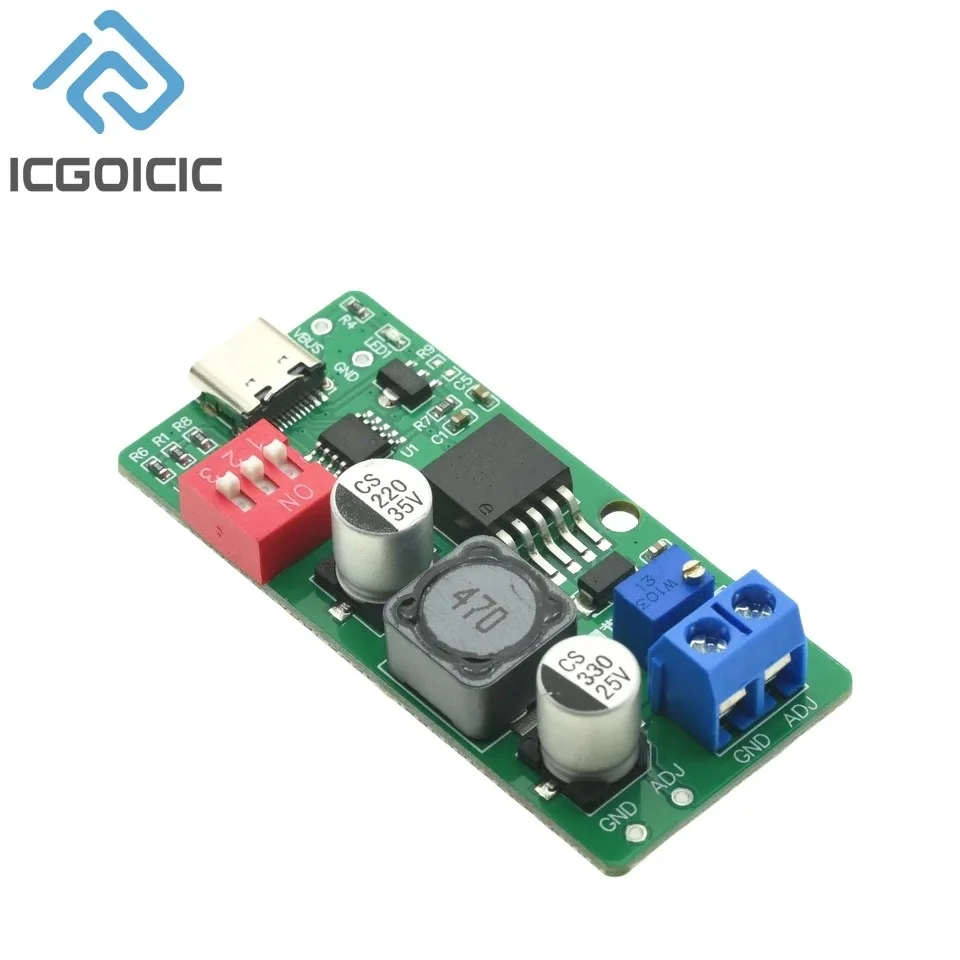

🔌 USB-C PD Trigger Module – Versatile Power Control for Charger Testing & DIY Applications
🌿 This innovative PD decoy module stands out as a highly effective power controller crafted specifically for the testing and development of the USB Power Delivery (PD) protocol. With the ability to select output voltages of 5V, 9V, 12V, 15V, and 18V, this module also incorporates an adjustable voltage output ranging from 1.8V to 18V, providing versatile options for various applications. Capable of sustaining a continuous output current of 1.5A, it boasts superior heat dissipation capabilities that enable it to handle up to 2A, making it ideal for demanding projects.
💍 Engineered for practicality, this decoy features easily accessible terminal wiring, enhancing convenience during real-world applications. The module is distinguished from traditional PD lurers by its exceptional parameter adjustability, allowing for flexible control and management tailored to specific testing scenarios. Crafted from high-quality materials and components, this device ensures robust performance and steadfast stability, having undergone rigorous quality testing to guarantee reliable function and output.
🛠️ This PD decoy is particularly beneficial for developers and testers who engage with the USB PD protocol, offering an easy-to-use, high-performance solution that can cater to a multitude of requirements. It serves as an accurate power controller that showcases precision, reliability, and stability, making it an exceptional resource in both USB PD protocol development and broader applications.
⚡ Supported Protocols:
⚡ The CH224K microcontroller seamlessly integrates various fast-charging protocols, including USB and PD. It supports advanced boost charging protocols such as PD3.0 and PD2.0, automatically detecting VCONN and analog E-Mark chips, and can handle power levels of up to 100W. Additionally, a built-in PD communication module allows for high levels of integration while minimizing peripheral components.
🧩 Product Functionality:
🔌 This module is designed to facilitate voltage manipulation for fast charging devices and power supplies, enabling users to harness voltages from power banks or chargers. For instance, when connected to a fast charging power bank, it can output voltages of 9V or 12V by adjusting via a potentiometer. This makes it suitable for powering devices such as monitoring equipment, routers, optical network units, and fans.
🔋 Note: The voltage adjustment feature allows for reduction only; for example, if the fast charging power supply outputs 12V, the maximum adjustable ADJ output voltage will be limited to 10V.
