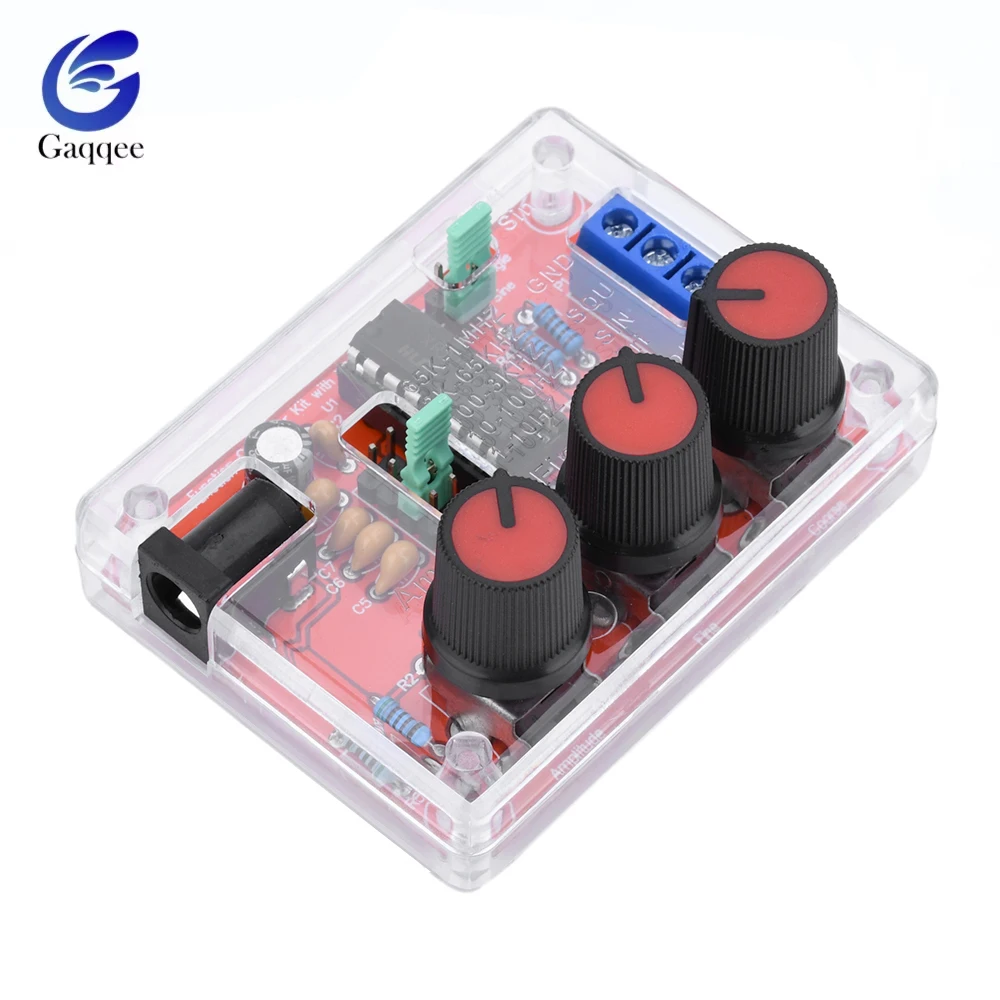

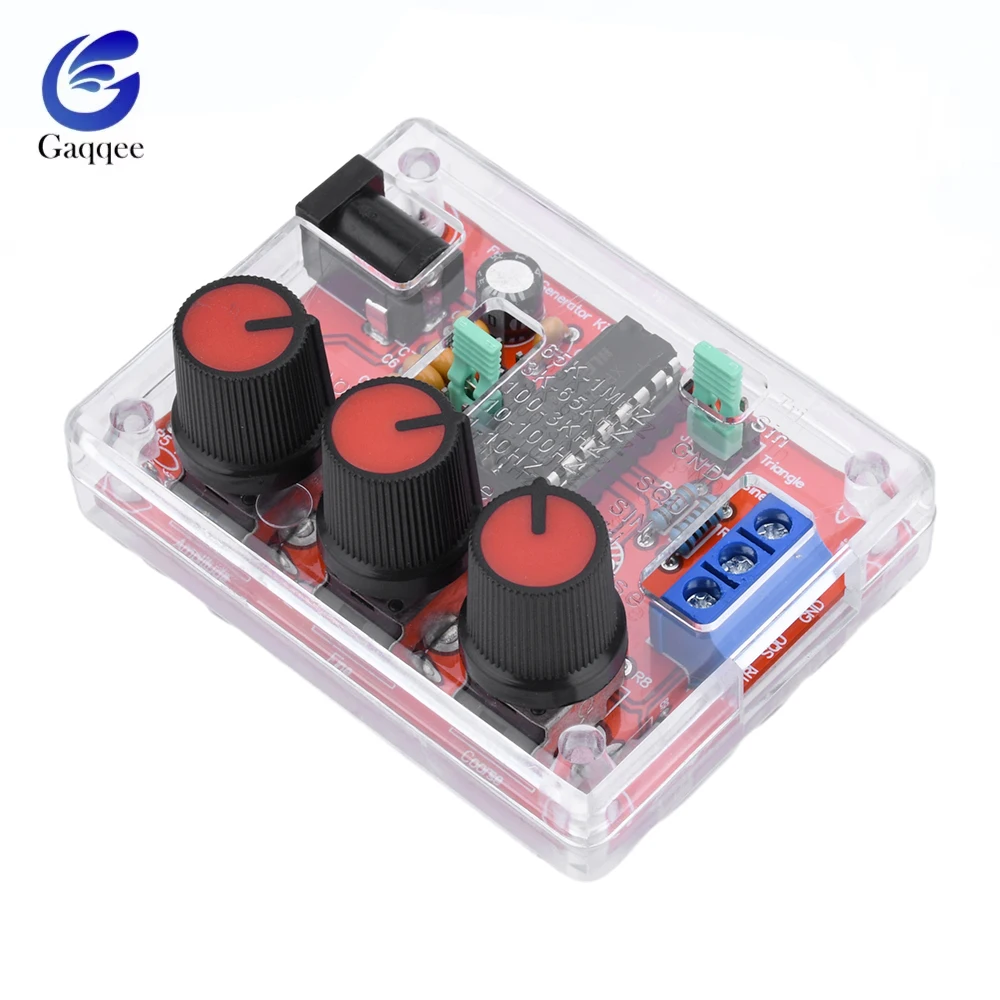

Overview:
The XR2206 Signal Generator DIY Kit is an innovative and versatile tool designed for electronics enthusiasts and professionals alike. This kit enables users to generate sine, triangle, and square waveforms with a frequency range spanning from 1Hz to 1MHz. Its adjustable amplitude and user-friendly interface make it an indispensable resource for a variety of applications, including testing circuits, developing audio equipment, and experimenting with electronic projects.
🔧 Key Features:
- Compact Design: The kit boasts an exquisite and compact appearance with a beautifully arranged layout of components that is not only visually appealing but also enhances ease of use.
- Durability: Constructed from high-quality materials, this signal generator is designed to withstand the rigors of frequent use, ensuring long-lasting performance.
- Adjustable Frequency and Amplitude: Users can effortlessly adjust the frequency across a wide spectrum from 1Hz to 1MHz. Additionally, the amplitude of the output can be fine-tuned to suit various requirements.
- Flexible Power Supply: This kit supports a broad range of power supply options, operating efficiently with 9-12V or through a 9V external power source, enhancing its versatility.
- Diverse Applications: Ideal for myriad industrial and DIY uses, this signal generator is perfect for hobbyists, educators, or professionals looking to experiment and innovate.
📦 Technical Specifications:
- Voltage Supply: 9-12V DC Input

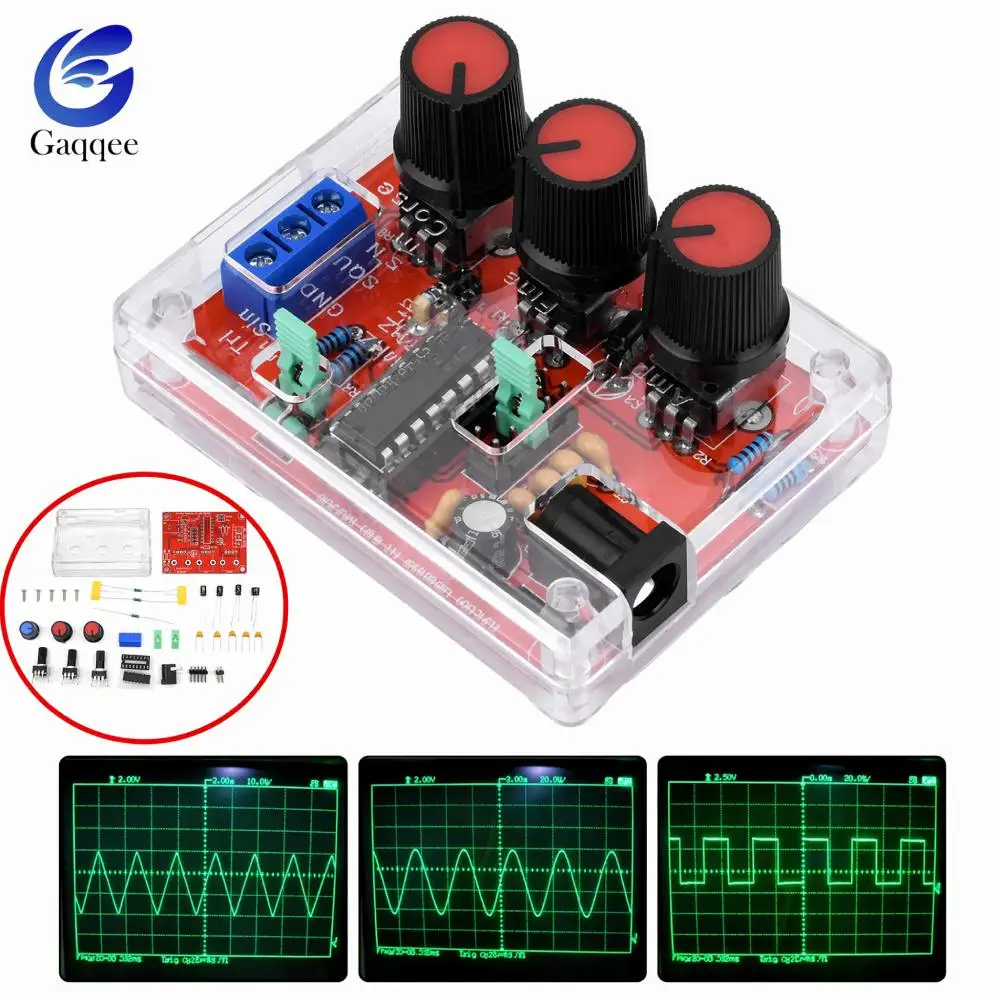

- Waveforms: Square, Sine & Triangle
- Impedance: 600 Ohm ± 10%
- Frequency Range: 1Hz - 1MHz
- Sine Wave:
- Amplitude: 0 - 3V at 9V DC input
- Distortion: Less than 1% (at 1kHz)
- Flatness: +0.05dB from 1Hz to 100kHz
- Square Wave:
- Amplitude: 8V (no load) at 9V DC input
- Rise Time: Less than 50ns (at 1kHz)
- Fall Time: Less than 30ns (at 1kHz)
- Symmetry: Less than 5% (at 1kHz)
- Triangle Wave:
- Amplitude: 0 - 3V at 9V DC input
- Linearity: Less than 1% (up to 100kHz)
Assembly Guidelines:
🏆 To ensure optimal performance and reliability, follow these recommended steps for assembly:

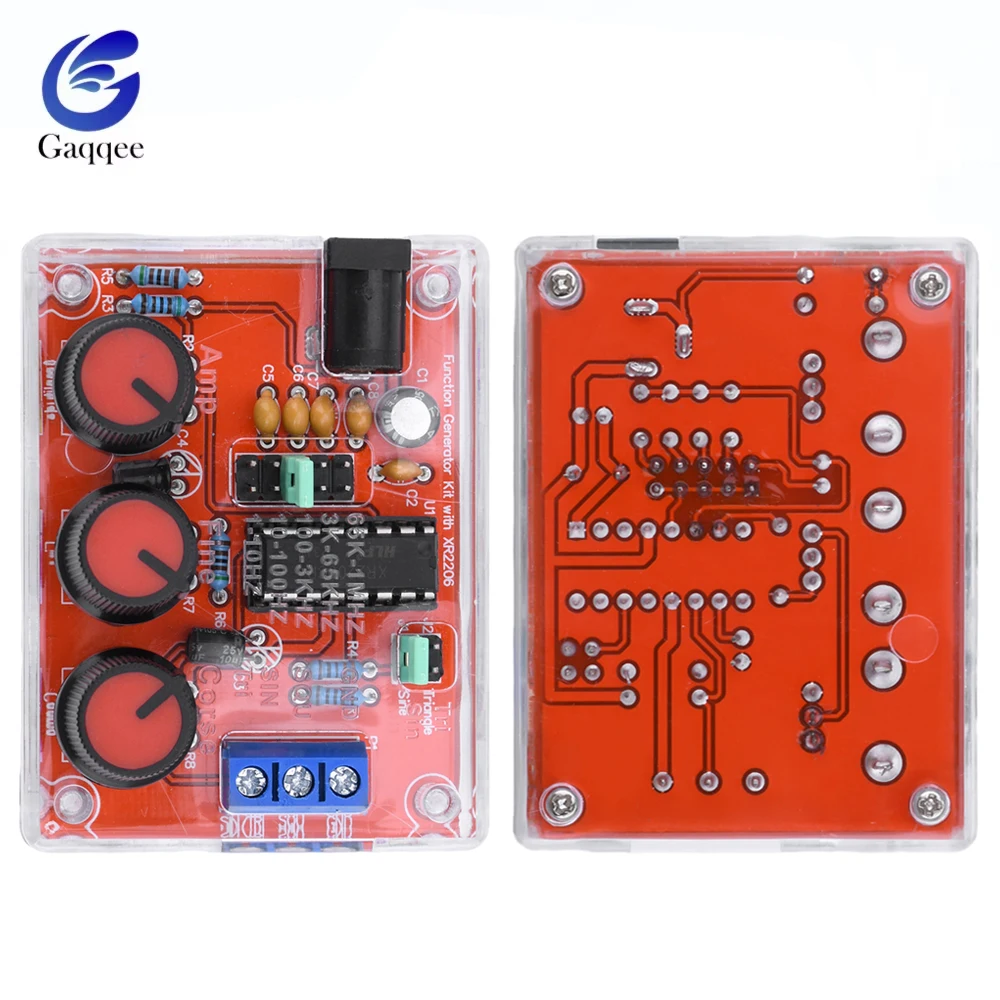

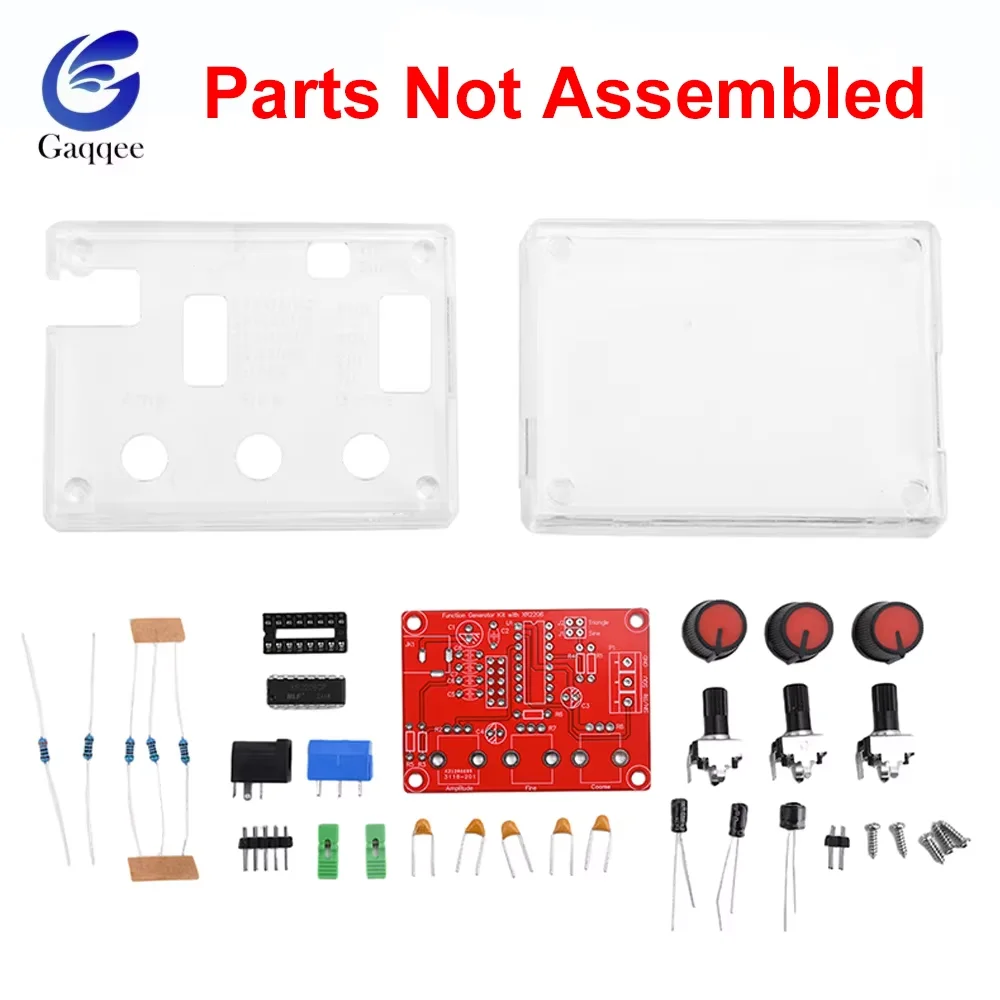

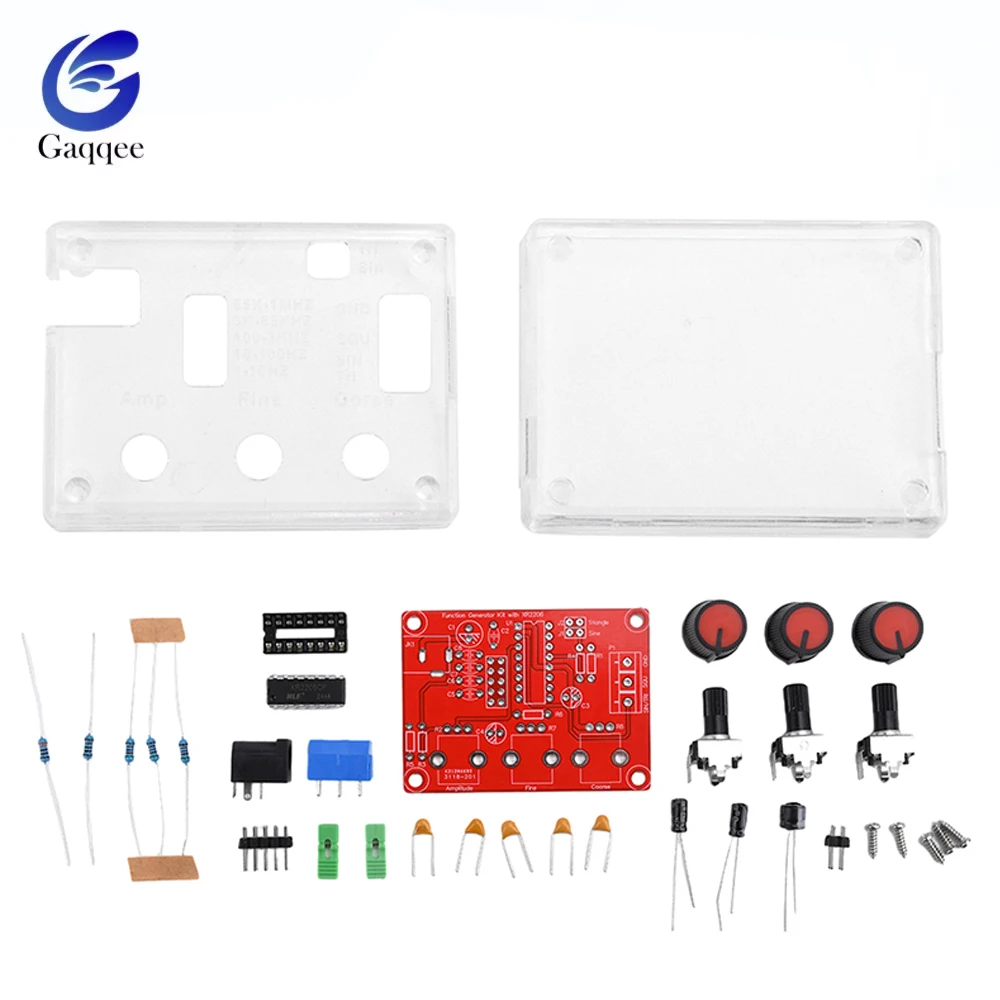

- Solder the components onto the front board in order of size, starting with lower components like capacitors, resistors, and diodes.
- Proceed to solder the IC socket, terminal blocks, and, lastly, the power socket and adjustable potentiometer.
- Use diagonal cutting pliers to trim any excess leads on the back of the board as close to the PCB as possible.
Debugging Steps:
- After soldering the IC (XR2206), ensure it is correctly oriented to avoid damaging the chip.
- Check for any solder bridges or incorrect placements; rectify any issues promptly.
- Connect the power supply via the appropriate port (5.5 x 2.1mm), making sure the negative polarity is oriented outward. Note that exceeding 12V may cause instability in waveforms.
⚡ Operating Instructions:

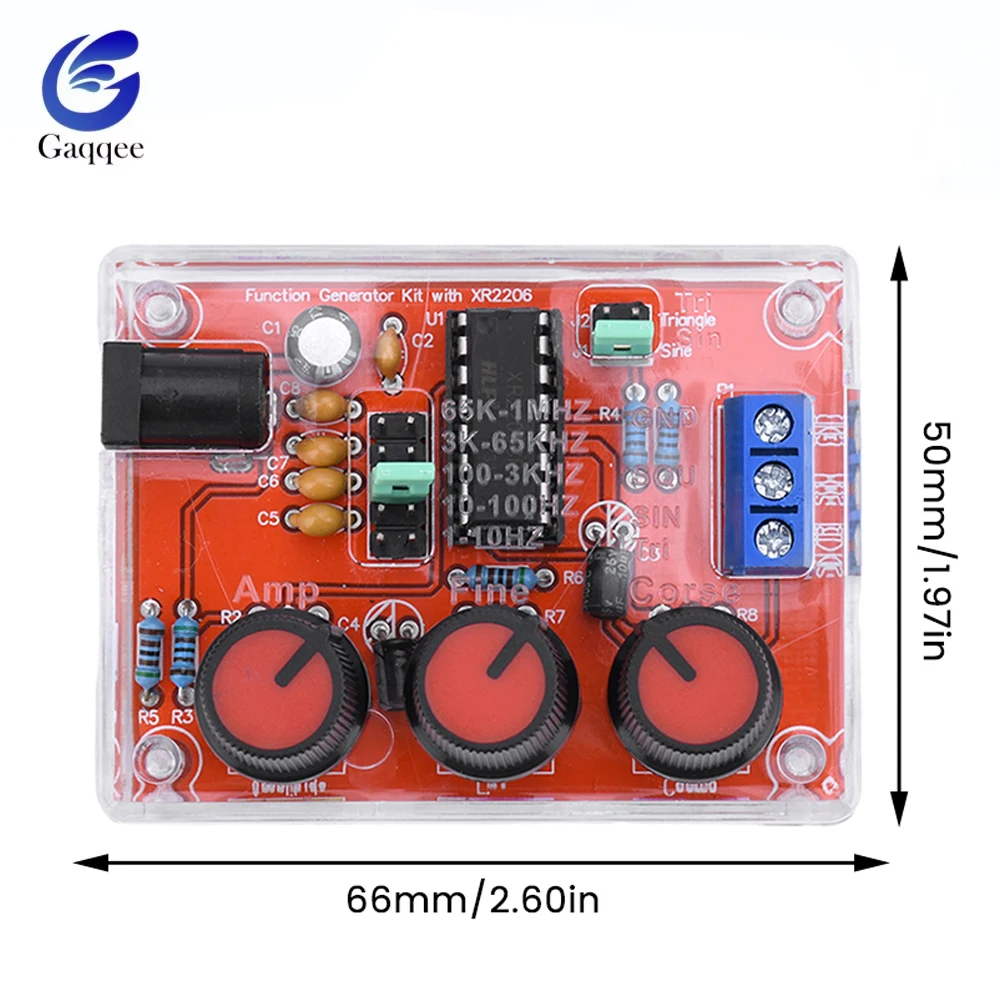

- Insert the jumper cap into J1 to output a sine wave from the SIN/TRI blue terminals (note that only one of J1 or J2 can be inserted at a time).
- If J2 is installed, the output will switch to a triangular wave from the same terminals.
- The SQU blue terminals will output a square pulse signal.
- Utilize the AMP control to adjust the amplitude of the sine and triangle waves.
- The FINE and COARSE knobs will enable precise and coarse frequency adjustments respectively.
🛠️ This XR2206 Signal Generator DIY Kit stands as a testament to quality, functionality, and user engagement, making it a perfect addition to any electronics toolkit.
