🛠️ XR2206 Function Signal Generator is a highly versatile and precise instrument designed for generating waveforms essential for various applications in electronics and beyond. Ideal for hobbyists, educators, and professionals alike, this signal generator delivers exceptional performance with an extensive frequency range and adjustable amplitude settings.
🔧 Key Features:
- Exquisite and compact design showcases an aesthetically pleasing arrangement of components, making it an appealing addition to any workspace.
- Constructed from high-quality materials ensuring durability and practicality for long-term use.
- Frequency adjustments ranging from 1Hz to 1MHz allow users to tailor output to specific needs.
- Amplitude of the frequency can be conveniently adjusted, enhancing versatility in signal generation.
- Compatible with a wide range of power supplies, operating efficiently on external sources of 9-12V or 9V.
- Designed for diverse applications, making it suitable for various industrial and DIY projects.
📦 Technical Parameters:
- Voltage Supply: DC 9-12V
- Waveform Types: Square wave, sine wave, and triangle wave
- Output Impedance: 600 ohms ±10%
- Frequency Range: 1Hz - 1MHz
Waveform Specifications:
- Sine Wave:
- Amplitude: 0-3V at 9V DC input
- Distortion: Less than 1%
- Square Wave:
- Amplitude: 8V (unloaded) at 9V DC input
- Rise Time: Less than 50ns
- Fall Time: Less than 30ns
- Symmetry: Less than 5% (at 1KHz)
- Triangular Wave:
- Amplitude: 0-3V at 9V DC input
- Linearity: Less than 1% (up to 100 kHz)
Packing List:

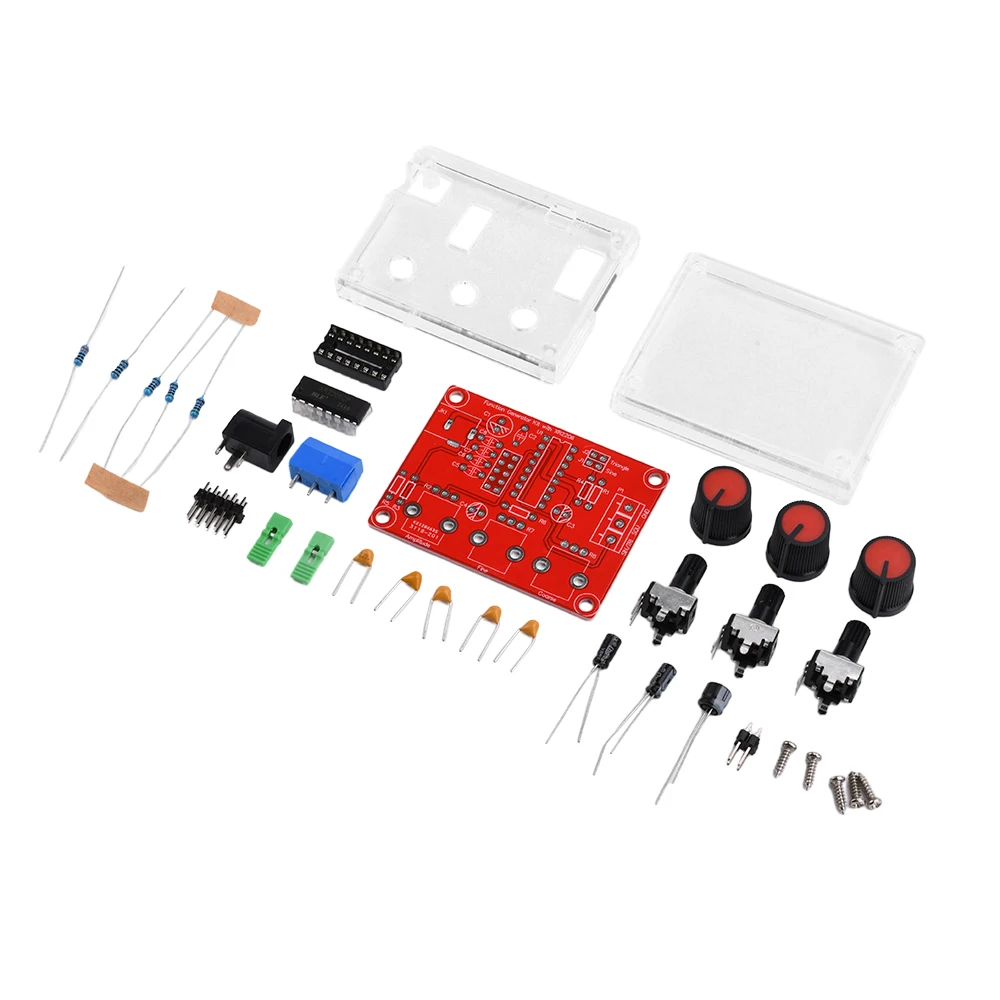

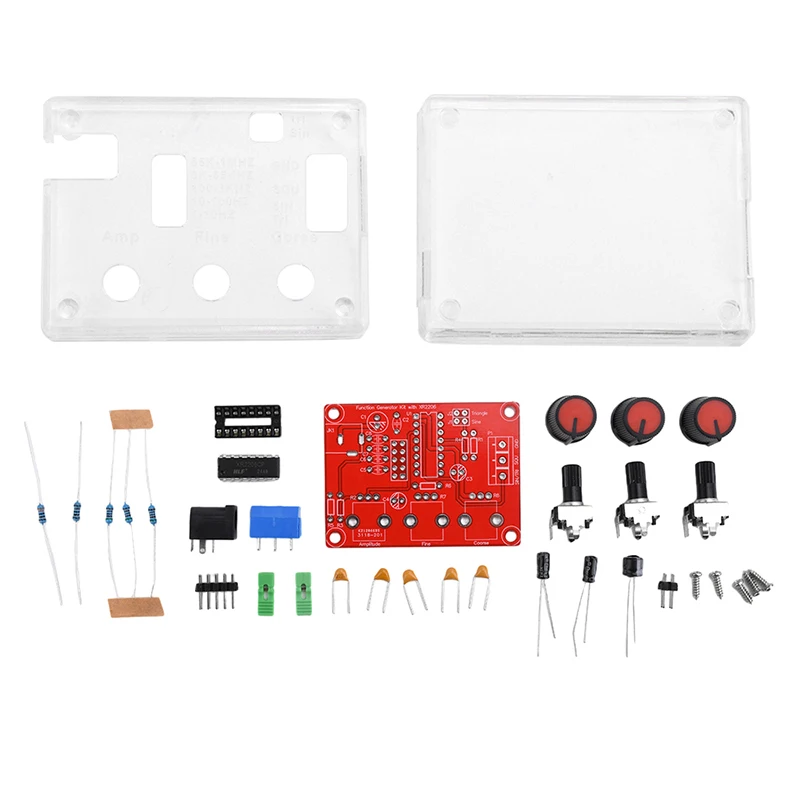

- DIY kit or finished product x 1
🧩 Explore the capabilities of the XR2206 Function Signal Generator, and unlock new possibilities in your projects and experiments. It's not just a tool—it's a gateway to creativity and innovation in signal processing.
