High Precision DIY Signal Generator Kit - Adjustable Frequency & Amplitude (Finished product)

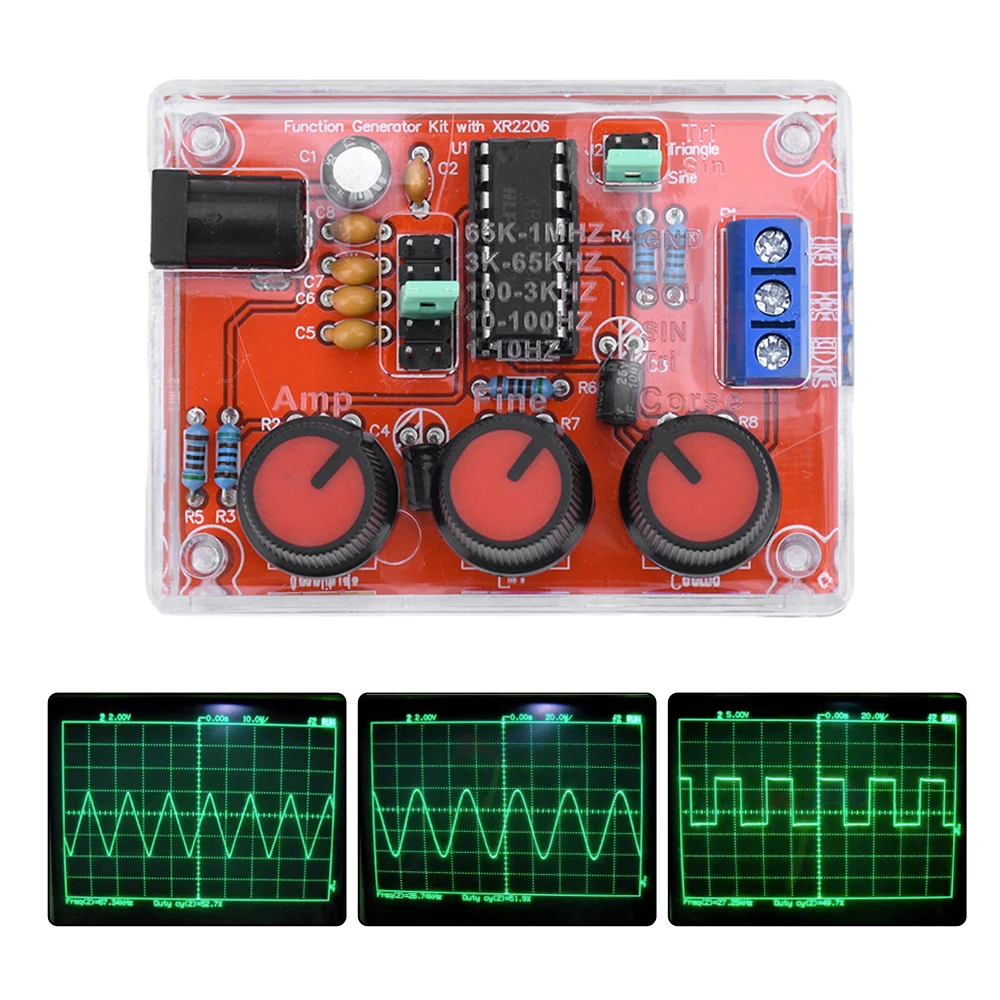

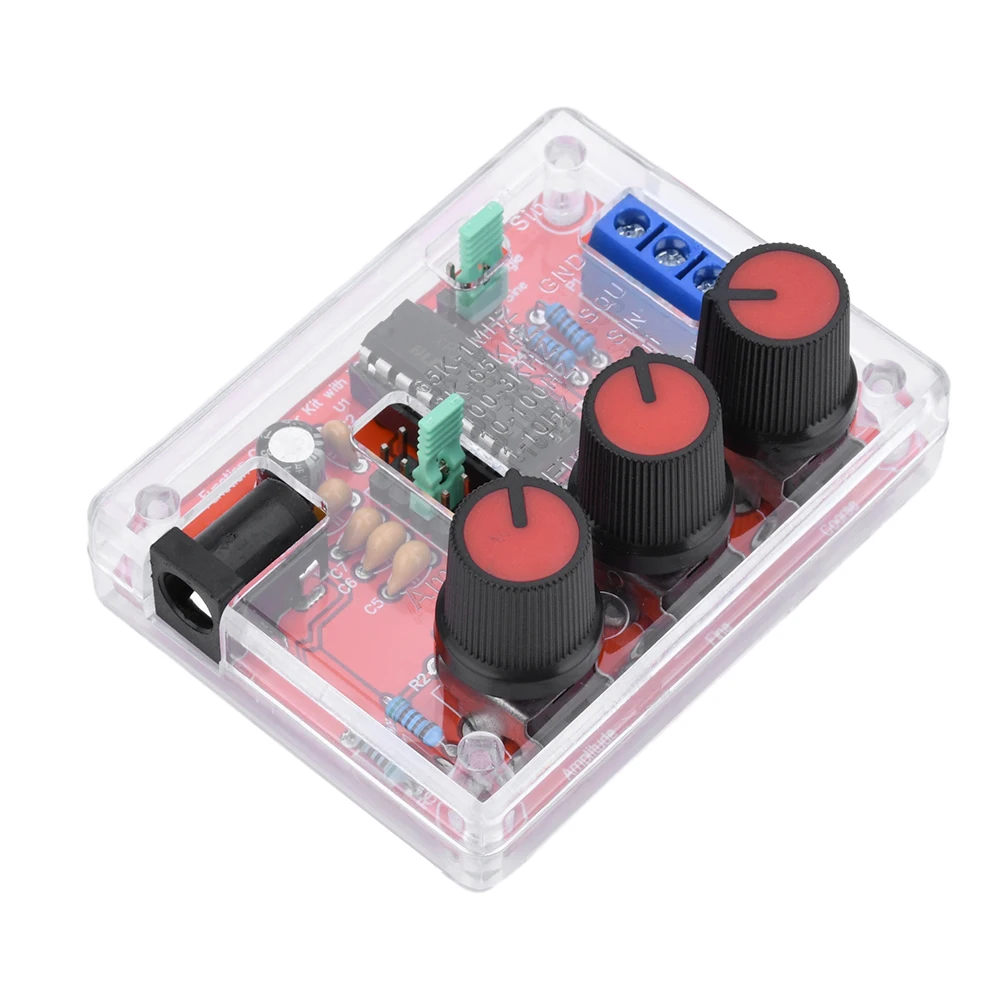

🛠️ Introducing the XR2206 High Precision Function Signal Generator DIY Kit, a versatile and robust solution for electronics enthusiasts, students, and professionals alike. This kit allows users to create a sophisticated signal generator capable of producing high-quality sine, triangle, and square waveforms. Designed for both learning and practical application, it is an ideal tool for experiments, testing, and prototyping.

🔧 Key Features:

• High Resolution: The XR2206 excels at generating precise sine, triangle, and square waveforms, making it suitable for a wide range of applications in electronics.
• Frequency Range: Operate within an impressive frequency spectrum of 1Hz to 1MHz, enabling users to explore low to high-frequency signals with ease.
• Adjustable Frequency and Amplitude: Customize your signals with intuitive frequency and amplitude adjustments. The unit offers both coarse and fine tuning capabilities for precise control.
• Power Supply Flexibility: The signal generator operates on a wide voltage range of 9-12V, allowing the use of an external power supply or a 9V battery (battery not included).

🪶 Technical Specifications:

• Voltage Supply: 9-12V DC input, accommodating various power sources for convenience.
• Output Waveforms: Includes square wave, sine, and triangle outputs, compatible with numerous applications.
• Impedance: Maintains an impedance of 600 ohms (+10%), ensuring compatibility with standard equipment.
• Square Wave Characteristics: Provides 8V amplitude (no-load) at 9V input, with sharp rise and fall times (less than 50ns and 30ns, respectively) and minimal symmetry deviation (less than 5%).
• Sine Wave Quality: Achieve an amplitude of 0-3V at 9V DC input with distortion kept to less than 1% across 11,000 cycles.
• Triangle Wave Performance: Delivers 0-3V amplitude with excellent linearity of less than 1% at frequencies up to 100 kHz and a current of 10mA.
• Flatness: Maintains a frequency response flatness of +0.05dB over the critical range of 1Hz - 100kHz.

💍 Package Includes:

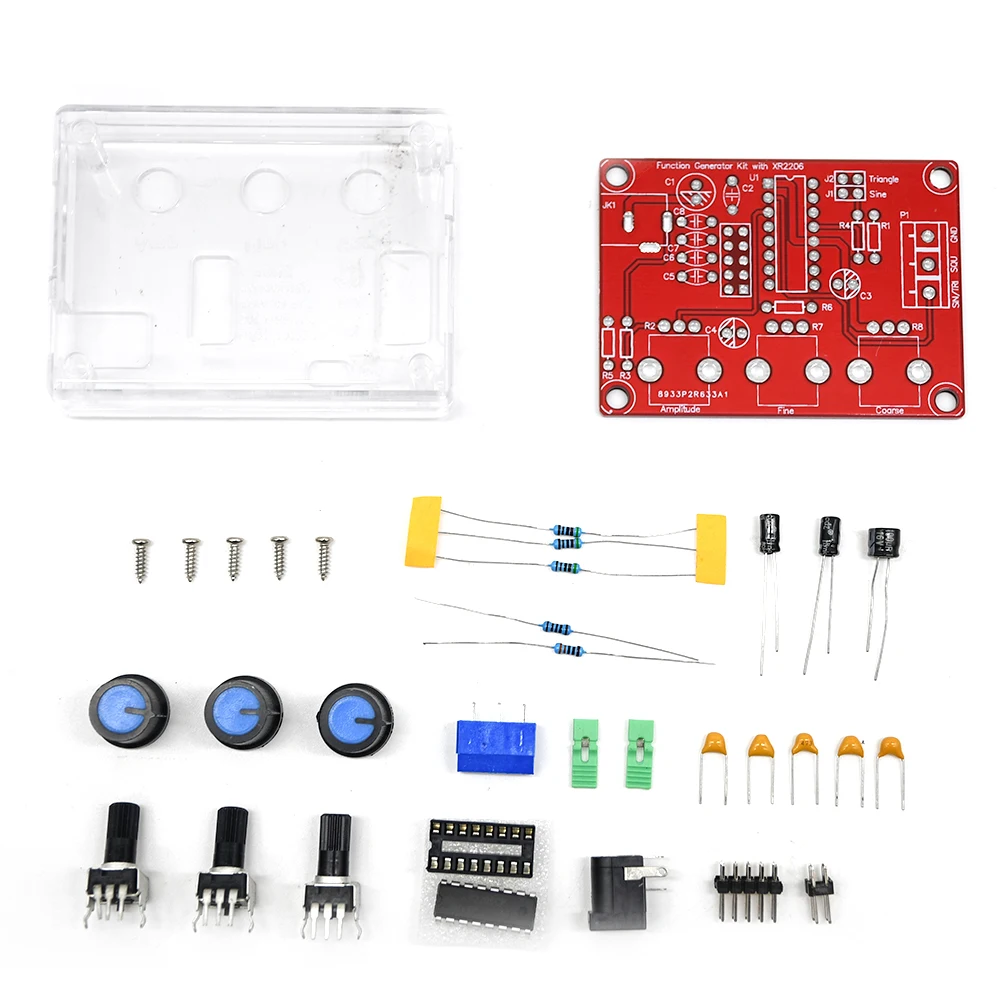

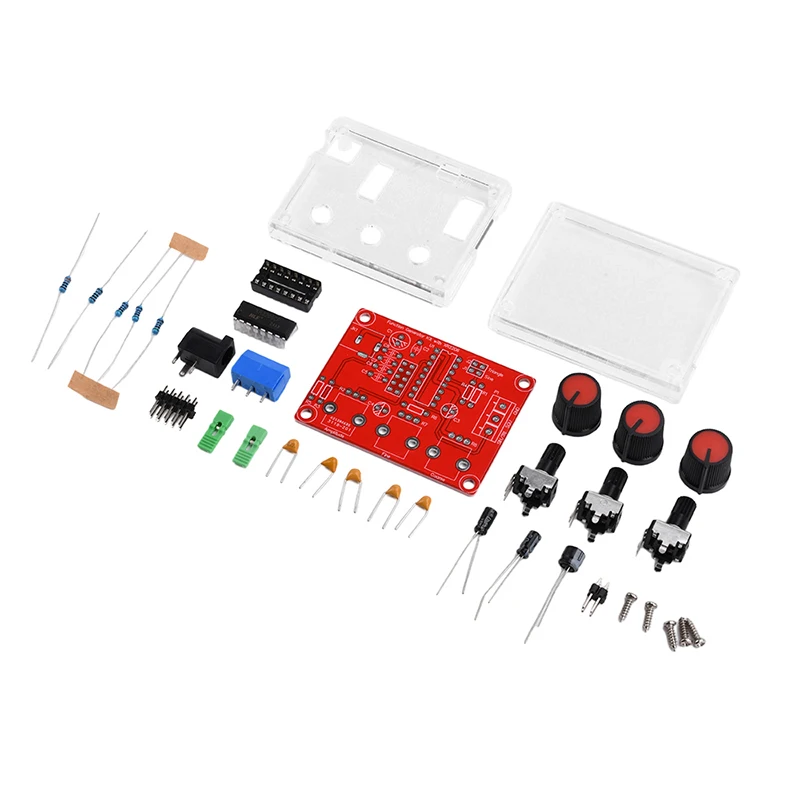

• DIY Kit: All necessary components to build your own high-precision signal generator.

🛠️ Unleash your creativity with the XR2206 High Precision Function Signal Generator DIY Kit and elevate your electronics projects to a new level of sophistication and performance!
